Identification: PL 800 ST-EL
Capacity kg: 1000
Lifting height mm: 800
Total height max mm: 1200
Total height min mm: 1200
Total width mm: 770
Total length mm: 1720
Fork length mm: 1150
Fork width mm: 570
Lifting motor: 1.5 kW
Lifting speed with load mm/s: 90
Lowering speed with/without load mm/s: 120/100
Battery: 12V/85 Ah
Charger: 12V/20Ah
Fork wheel Ø mm bogie/nylon: 74x70
Steering wheel Ø mm nylon: 180x50
Weight kg incl. battery: 300
Swing radius mm: 1280

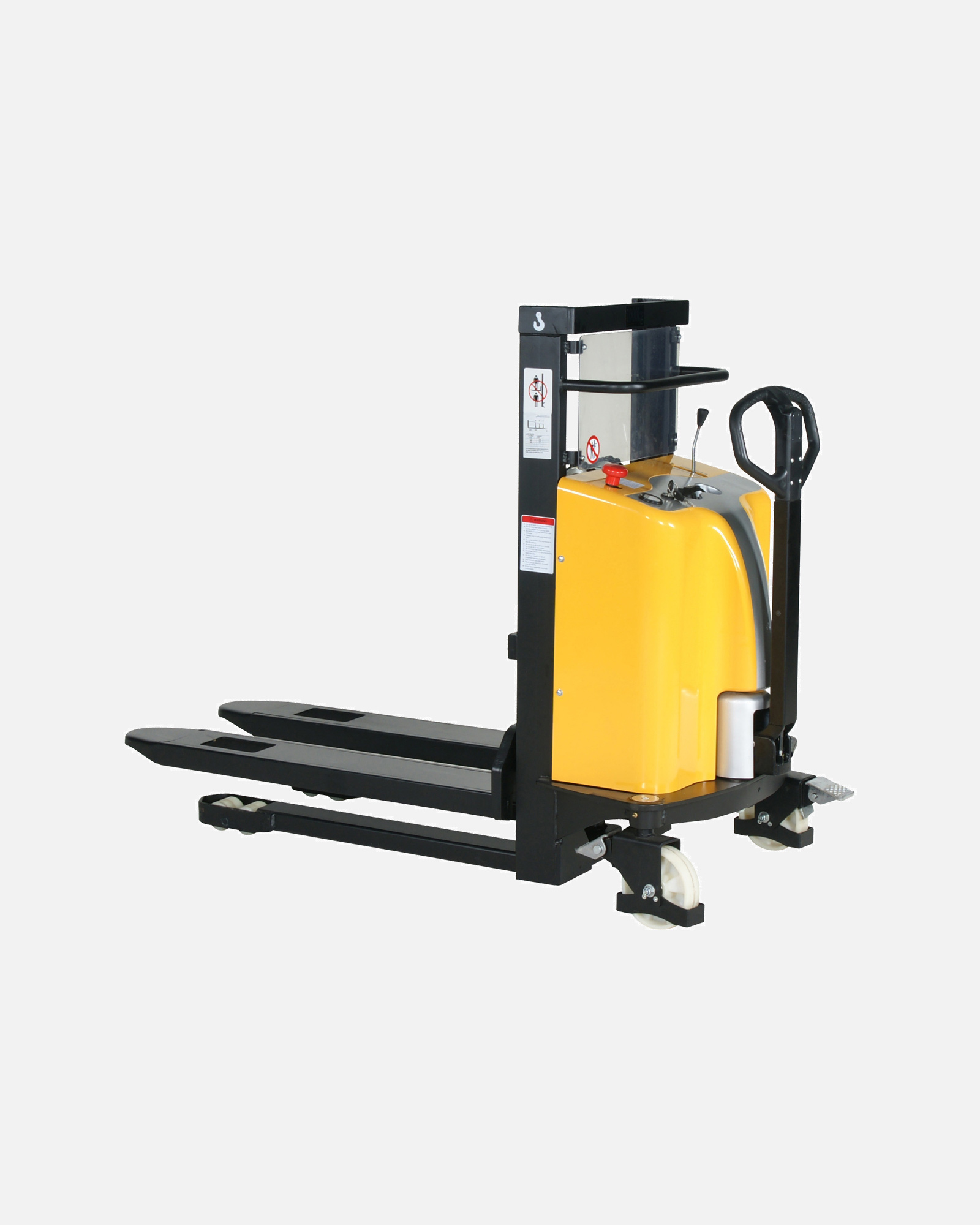

Hand-drawn stacker with a battery-powered lifting motor. Ergonomic handling for frequent heavy lifts. The stacker is completely adapted to its work tasks. Loading and unloading, as well as stacking of palletted goods. It can also be used as a raise / sunk worktable. The powerful battery provides a long operating time per charge. Foot brakes on both steering wheels.
Easy-to-service construction of the hydraulics, distribution box and battery. Internal charger.
- Efficient and ergonomic lifting tool.
- Supplied complete with a battery and an internal charger.

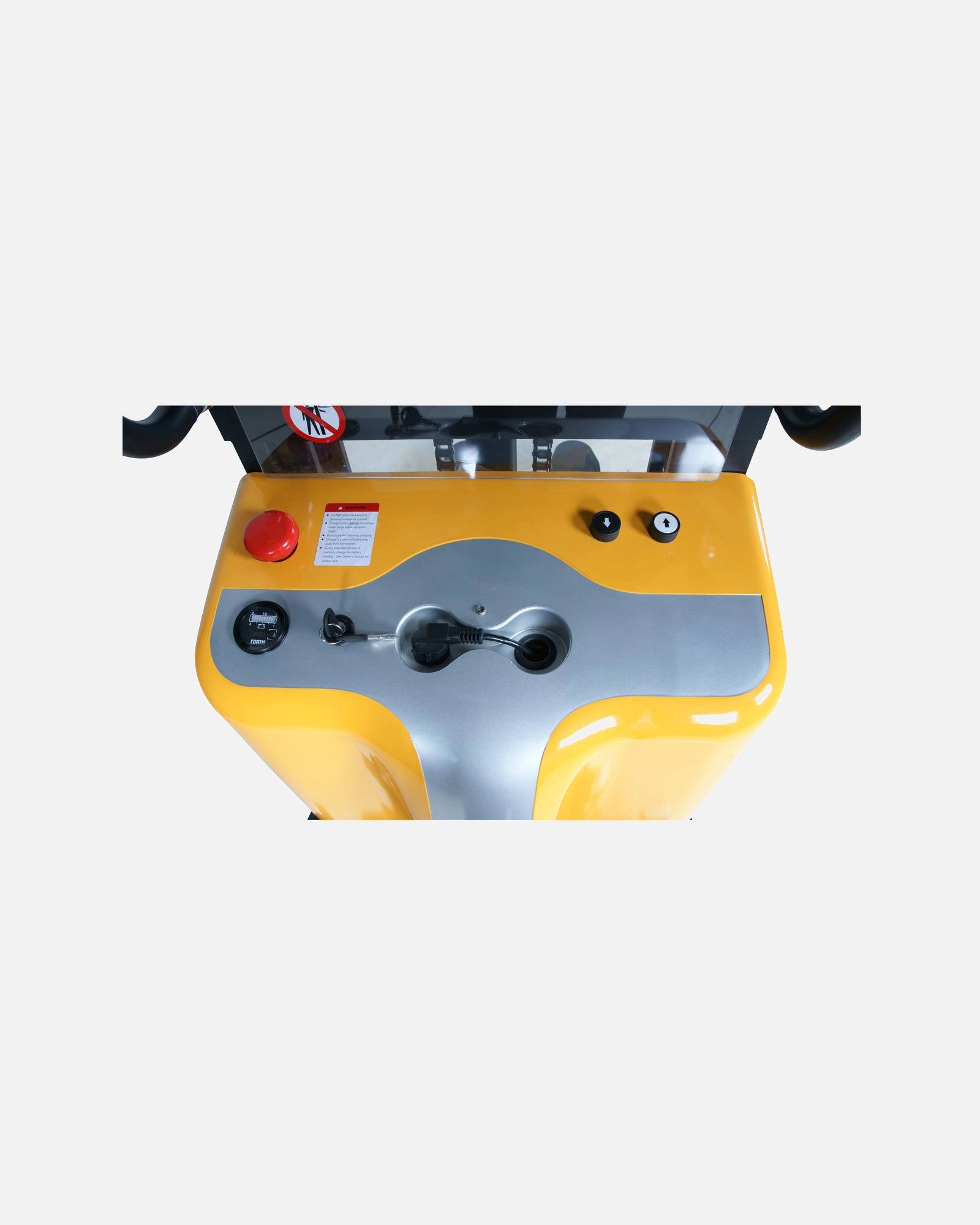

- Easy-to-read battery indicator for control of the capacity of the battery.
