Balder VV 800/900 GE Ergo EL

1841045511

Price: 54,418,000₫

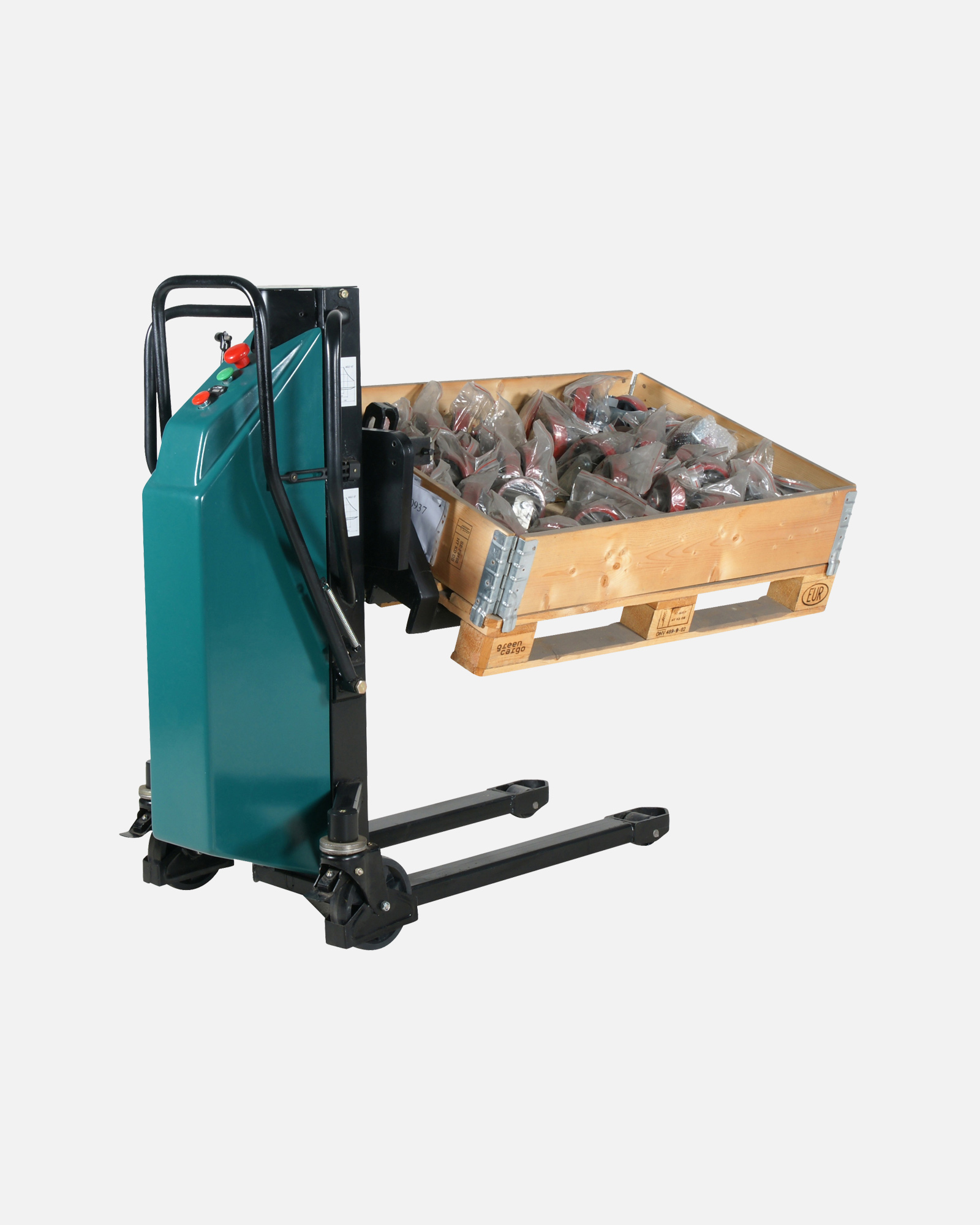

A compact stacker of a stable design with ergonomic tilt. The pallet is raised to the right work height and the sideways tilt makes the work comfortable and ergonomic.

More details

Identification: Ergo - EL
Capacity Kg: 800
Lifting height mm: 900
Lifting capacity / during tilting: 400
Total height mm: 1420
Total width mm: 730
Total length mm: 1690
Fork length mm: 1140
Width above forks mm: 540
Fork width mm: 150
Fork height lowered mm:87
Weight kg: 230 (without battery)
Swing radius mm: 1500
Steering wheel mm: 200x50
Fork wheel mm: 82x90
Tilt angle: 40°
Battery: 2x12 V / 60 Ah
Charger: External 10A/12V
Lifting speed with load: 50 mm /sec
Hydraulic motor: 700 w / 12 V

A compact stacker of a stable design with ergonomic tilt. The pallet is raised to the right work height and the sideways tilt makes the work comfortable and ergonomic. The tilt is manual. The design is very compact and is, therefore, suitable for cramped spaces. Brakes on both wheels.
