Capacity Kg: 1500
Min fork height mm: 85
Max fork height mm: 120
Centre of gravity separation: 600
Fork width mm: 520
Fork length mm: 1150
Driving speed with/without load km/h: 5.5/5.5
Lifting speed with/without load mm/s: 27/35
Lowering speed with/without load mm/s: 42/27
Swing radius mm: 1480
Drive motor: 0,9 kW
Lifting motor: 0.8 kW
Charger: Built-in (8Ah), operating voltage 220 V
Fork wheel Ø mm Polyurethane: 84 x 70
Drive wheel Ø mm: 252 x 89
Total width mm: 700
Weight kg incl. battery: 288

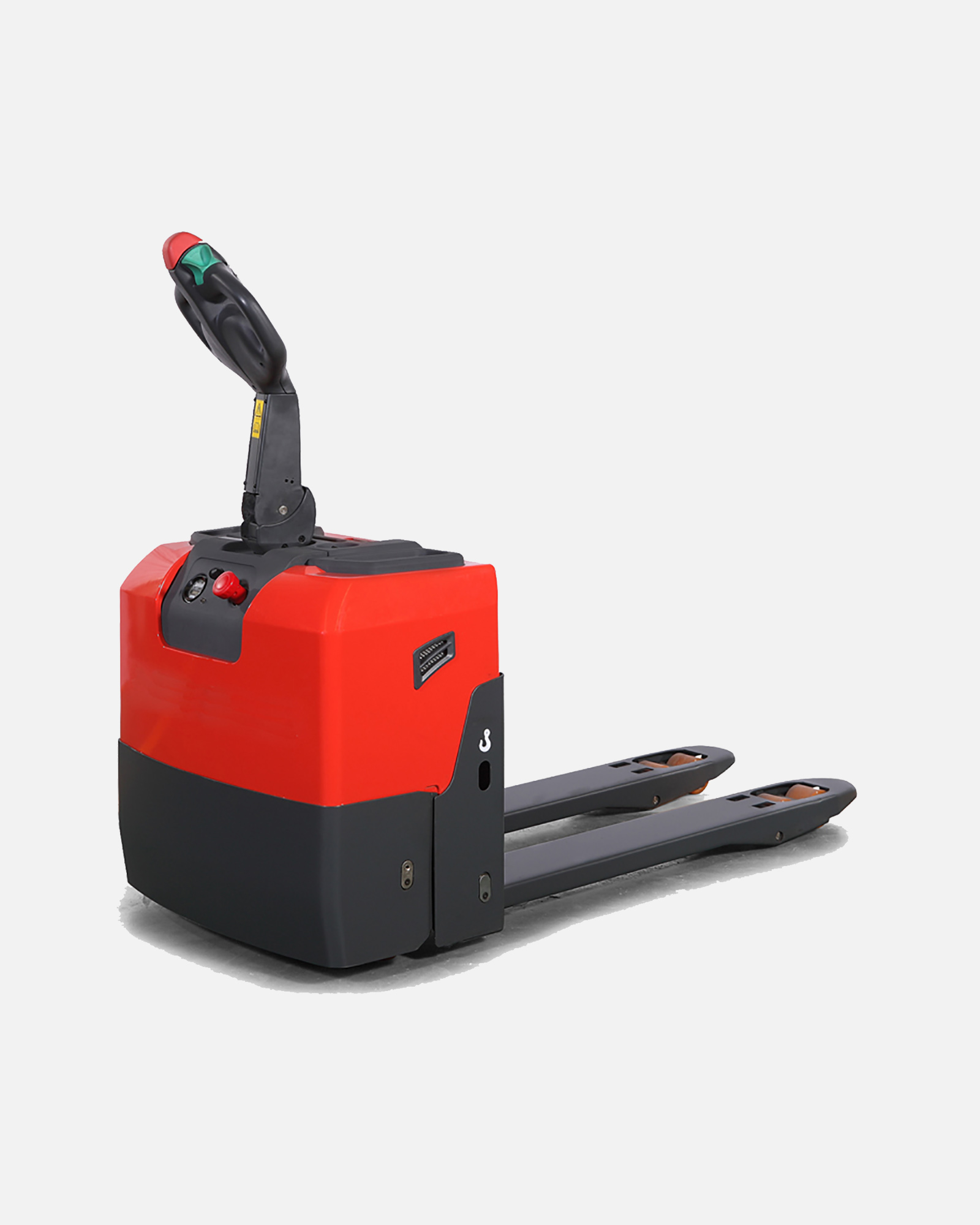

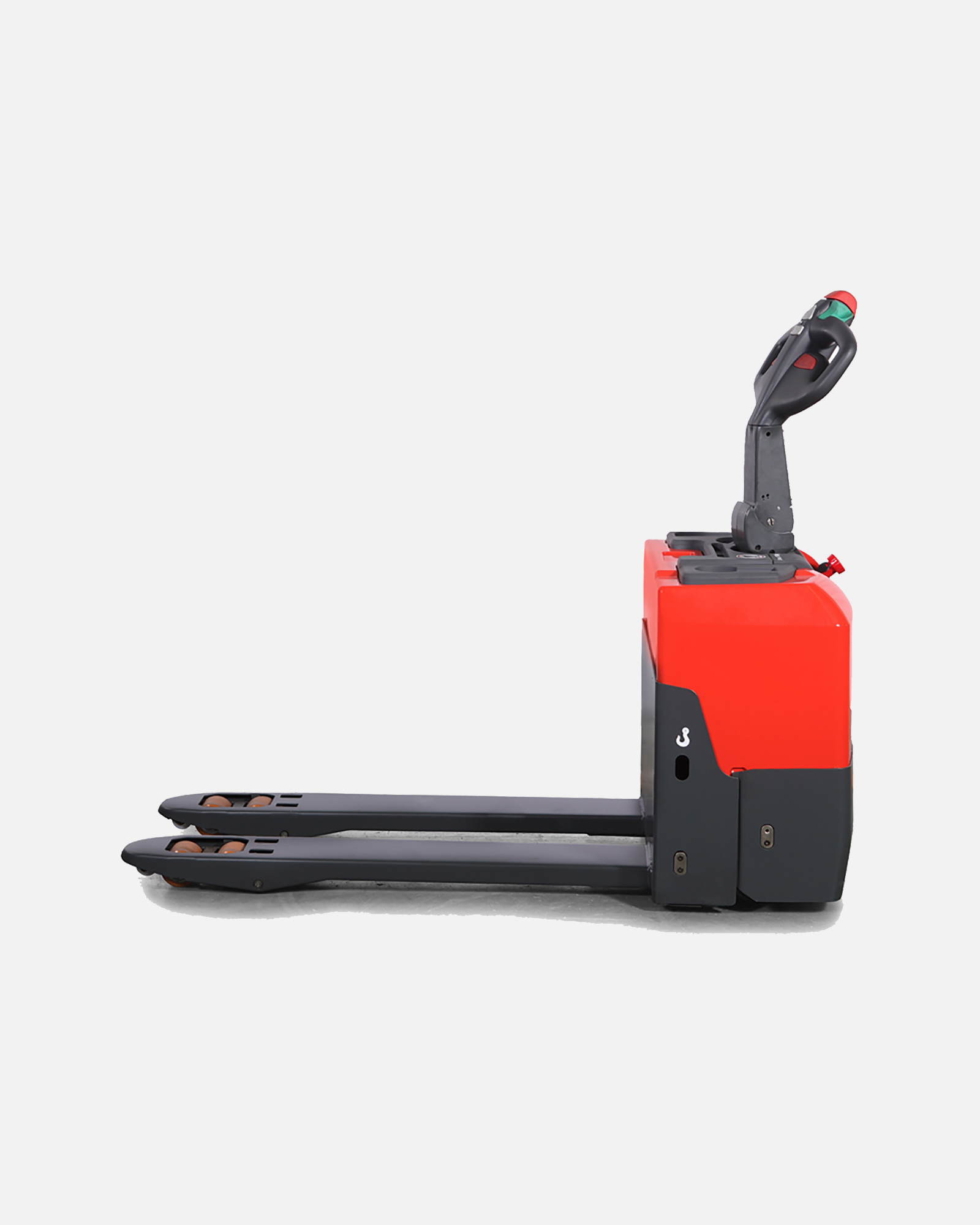

Easily controlled and safe motorised pallet truck. Multifunctional handle and safety cut-off which protects the operator from being crushed between walls and trucks when reversing. Motor control manufactured by CURTIS. Light and flexible steering for safe use.
- The new unique control handle has double controls so as to be suitable for everyone, both right- and left-handed.
- Manual speed control between high and low speed.
- Crush protection.
