Identification: EPT 15N
Capacity Kg: 1500
Min fork height mm: 85
Max fork height mm: 115
Centre of gravity separation: 600
Fork width mm: 540
Fork length mm: 1150
Driving speed with/without load km/h: 4.2/4.6
Lifting speed with/without load mm/s: Manual
Lowering speed with/without load mm/s: Manual
Swing radius mm: 1445
Electronics: Curtis
Drive motor: 0.45 kW
Lifting motor: Manual
Battery: 2x12V/38Ah
Charger: Built-in (6 Ah), operating voltage 220 V
Fork wheel Ø mm Polyutethane: 80x70
Drive wheel Ø mm: 220x70
Total width mm: 560
Weight kg incl. battery: 165

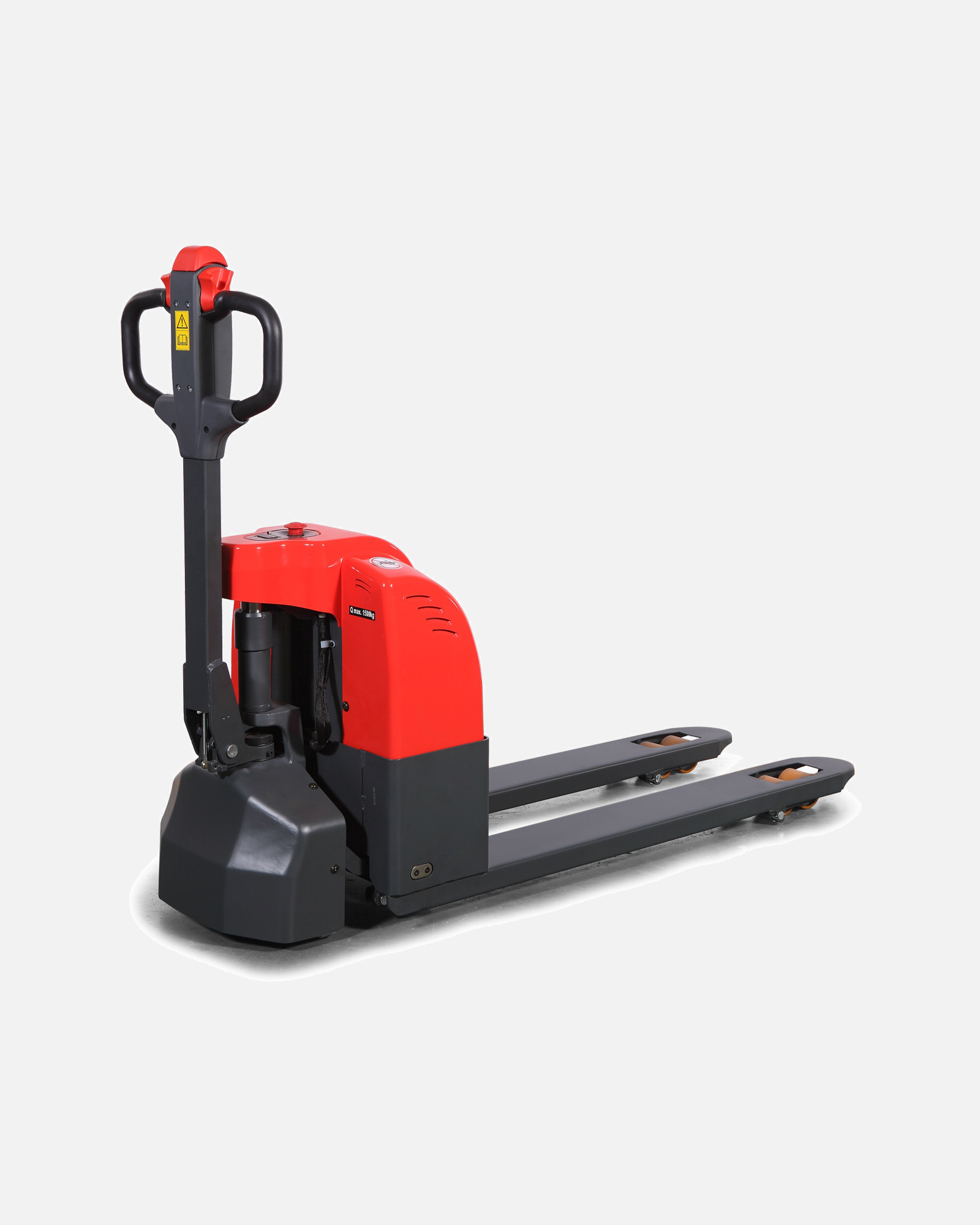

Compact semi-electric pallet truck, manual lifting and electric driving. It is small like a normal manual hand pallet truck but saves the body from wear and tear thanks to its traction. Support wheels on the sides to prevent the truck to become unstable during transport of goods with a high gravity.
