Identification: PT20
Capacity Kg: 2000
Min fork height mm: 85
Max fork height mm: 120
Centre of gravity separation: 600
Fork width mm: 540
Fork length mm: 1150
Driving speed with/without load km/h: 6.0/6.0
Lifting speed with/without load mm/s: 27/35
Lowering speed with/without load mm/s: 42/27
Swing radius mm: 1585
Electronics: Curtis
Drive motor: 1.3 kW
Lifting motor: 0.8 kW
Battery: 200Ah/2x12V
Charger: Built-in (8Ah), operating voltage 220 V
Fork wheel Ø mm Polyurethane: 84 x 84
Drive wheel Ø mm: 230 x 75
Total width mm: 729
Weight kg incl. battery: 638

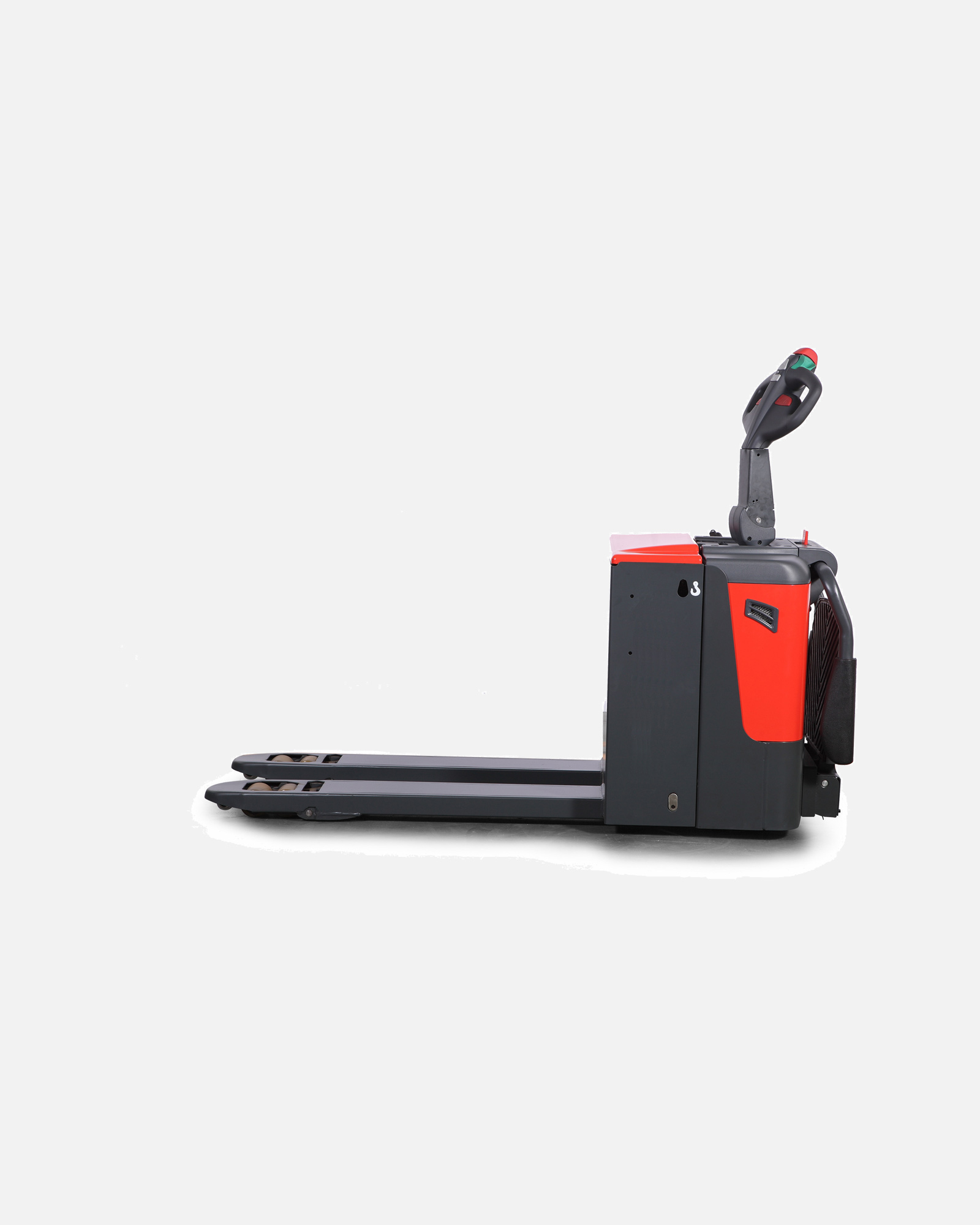

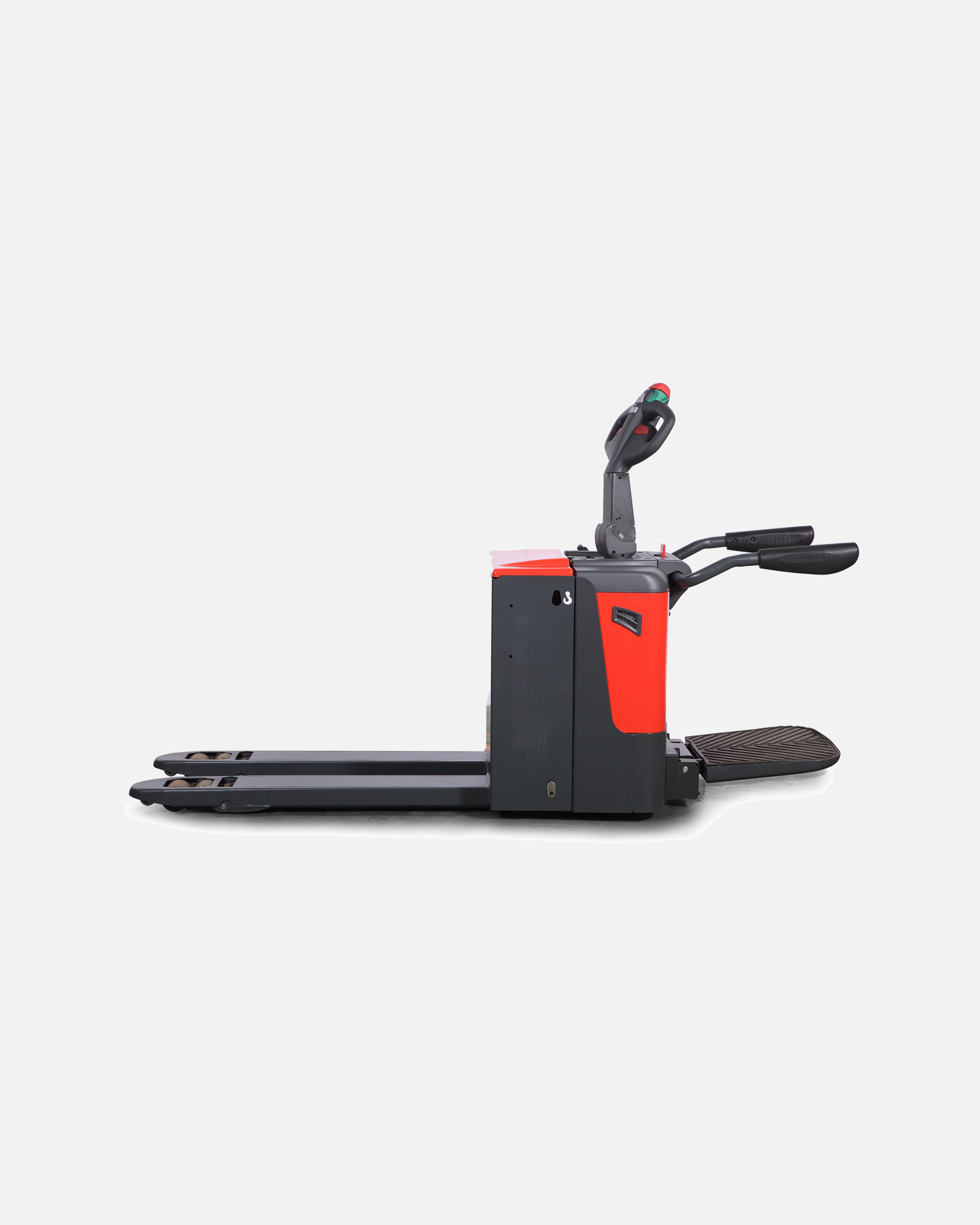

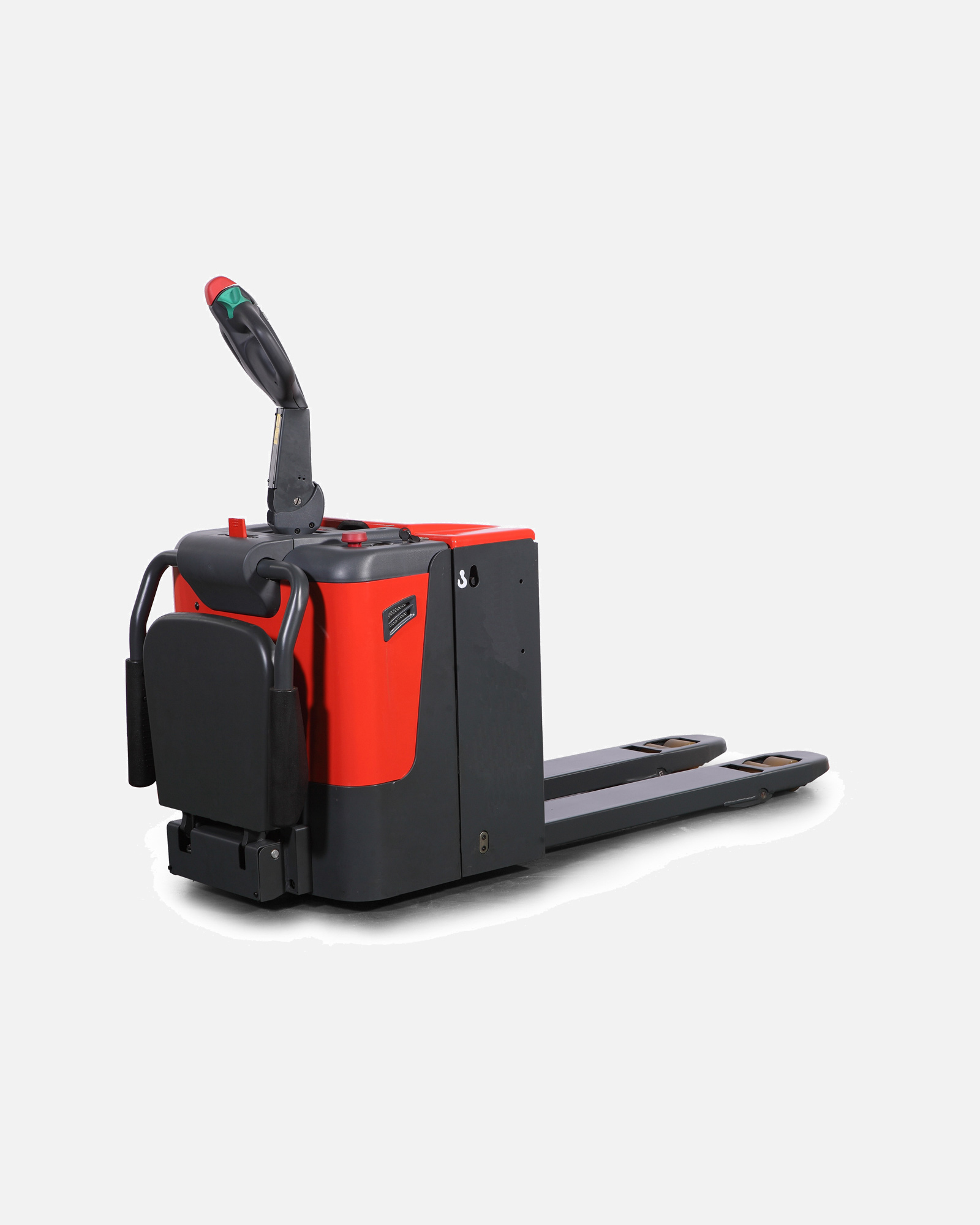

Electric pallet truck with electronic power steering and stand on platform with side protectors make the working day easier and safer. It does not get easier to handle goods in tight working areas that with this full electric pallet truck with power steering. Strong and robust with crucial details for the convenience of the user.
