ECL1029 Pedestrian Stacker 1000kg

1615045004

Price: 103,653,000₫

Drive wheel mm: 220 x 70 Gradient capacity without/with load: 10/5 degrees Brake: Electromagnetic Speed regulation: Electronic impulse Weight kg incl. battery: 510 Mast type: Duplex

More details

Identification: ECL 1016
Capacity Kg: 1000
Min fork height mm: 85
Lifting height mm: 2840
Centre of gravity separation: 600
Min support height: 1950
Min support height: 3325
Total width mm: 800
Total lenght mm: 1800
Free lift mm: 70
Fork width mm: 570
Fork length mm: 1150
Driving speed without/with load km/h: 4.5/4.3
Lifting speed without/with load mm/s: 160/130
Lowering speed without/with load mm/s: 110/130
Swing radius mm: 1485
Electronics: Curtis
Drive motor: 0.45 kW
Lifting motor: 2.2 kW
Truck battery: 85Ah/24V
Charger: Built In
Fork wheel mm: Polyutethane 80 x 93
Drive wheel mm: 220 x 70
Gradient capacity without/with load: 10/5 degrees
Brake: Electromagnetic
Speed regulation: Electronic impulse
Weight kg incl. battery: 510
Mast type: Duplex

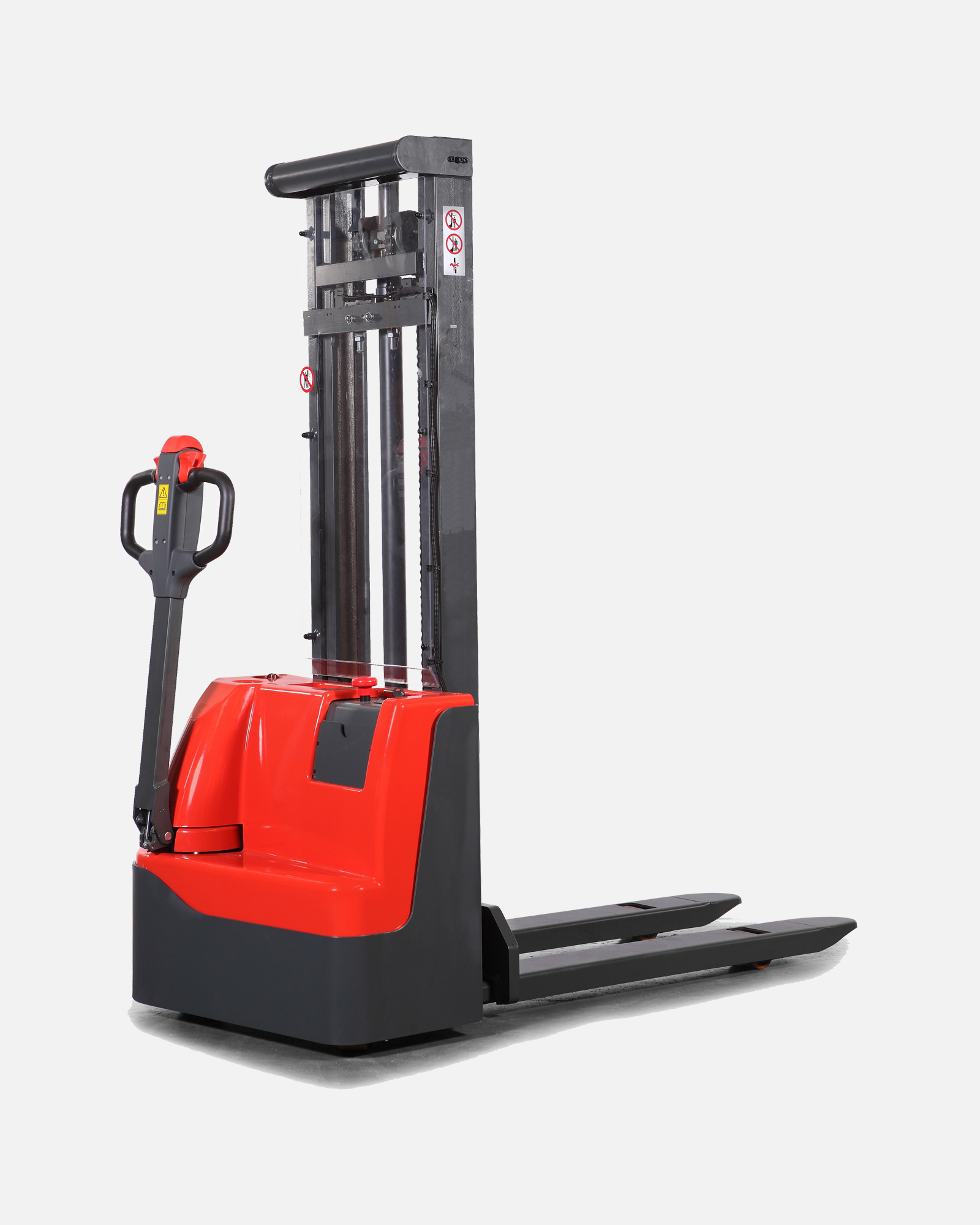

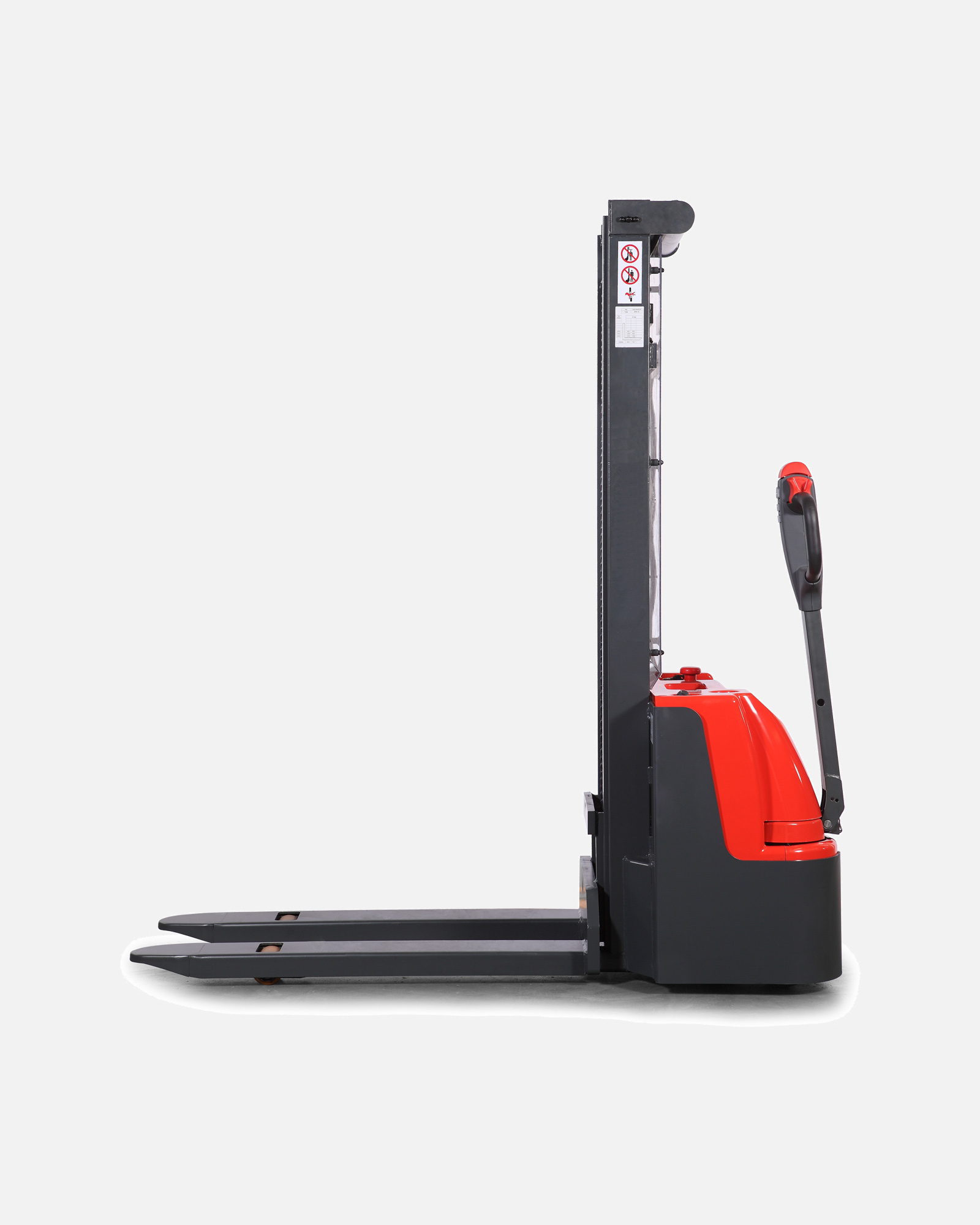

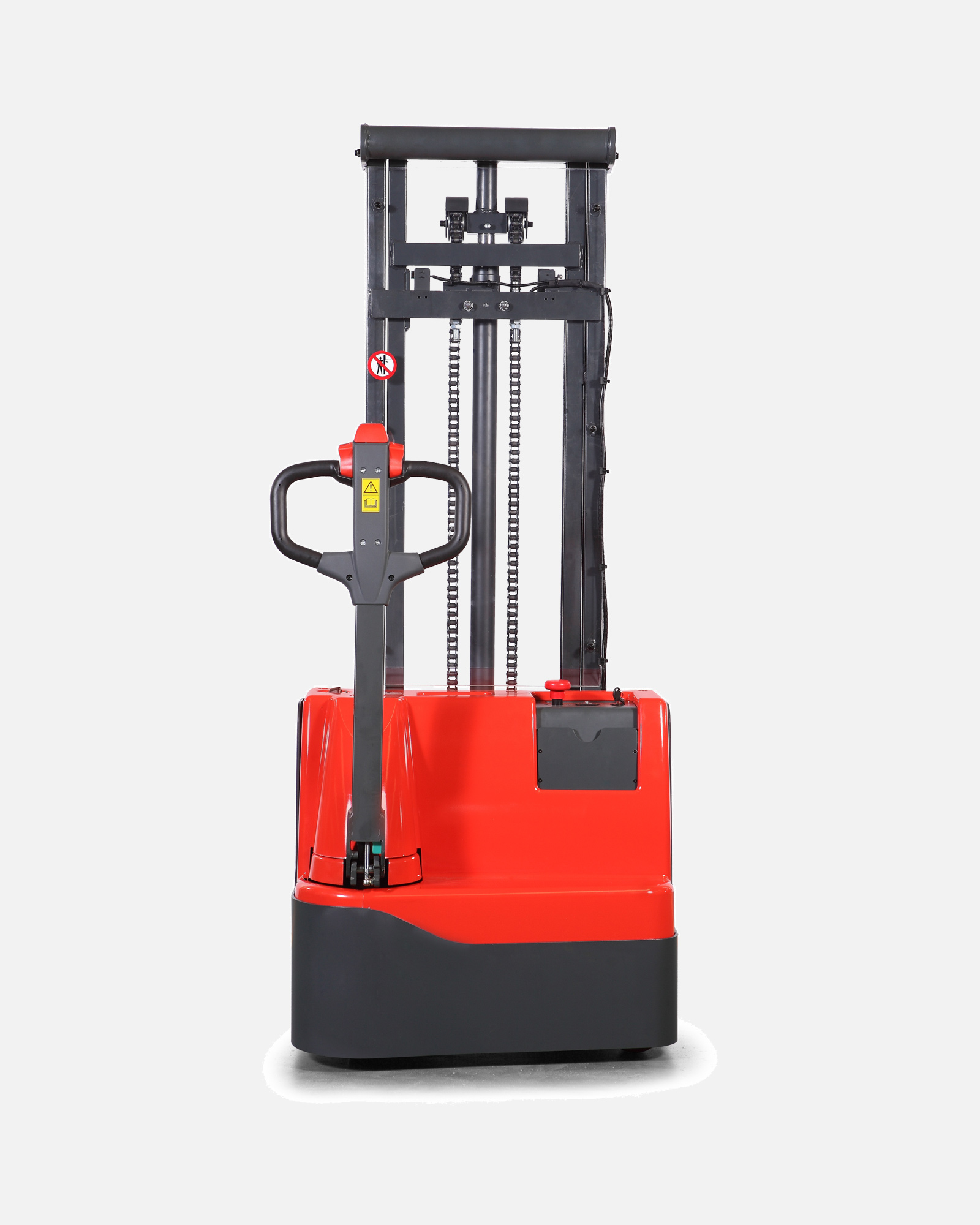

The ECL is an economic walkie-electric stacker, with rated capacity of 1000 kg and a lifting height of 2840 mm. The compact and light design is suitable for a variety of low duty applications in warehouses.
