Identification: PS10M
Capacity Kg: 1000
Min fork height mm: 85
Lifting height mm: 1600
Centre of gravity separation: 600
Min support height: 1970
Total width mm: 692
Fork width mm: 540
Fork length mm: 1150
Driving speed without/with load km/h: 5.5/5.5
Lifting speed without/with load mm/s: 197/76
Lowering speed without/with load mm/s: 106/110
Swing radius mm: 1360
Electronics: Curtis
Drive motor: 0,9 kW
Lifting motor: 1,2 kW
Truck battery: 106Ah/2x12V
Charger: Built In
Fork wheel mm: Polyutethane 70 x 84
Drive wheel mm: 252x89
Gradient capacity without/with load: 10/5 degrees
Brake: Electromagnetic
Speed regulation: AC-SpeedControl/DC
Weight kg incl. battery: 536
Mast type: Simplex

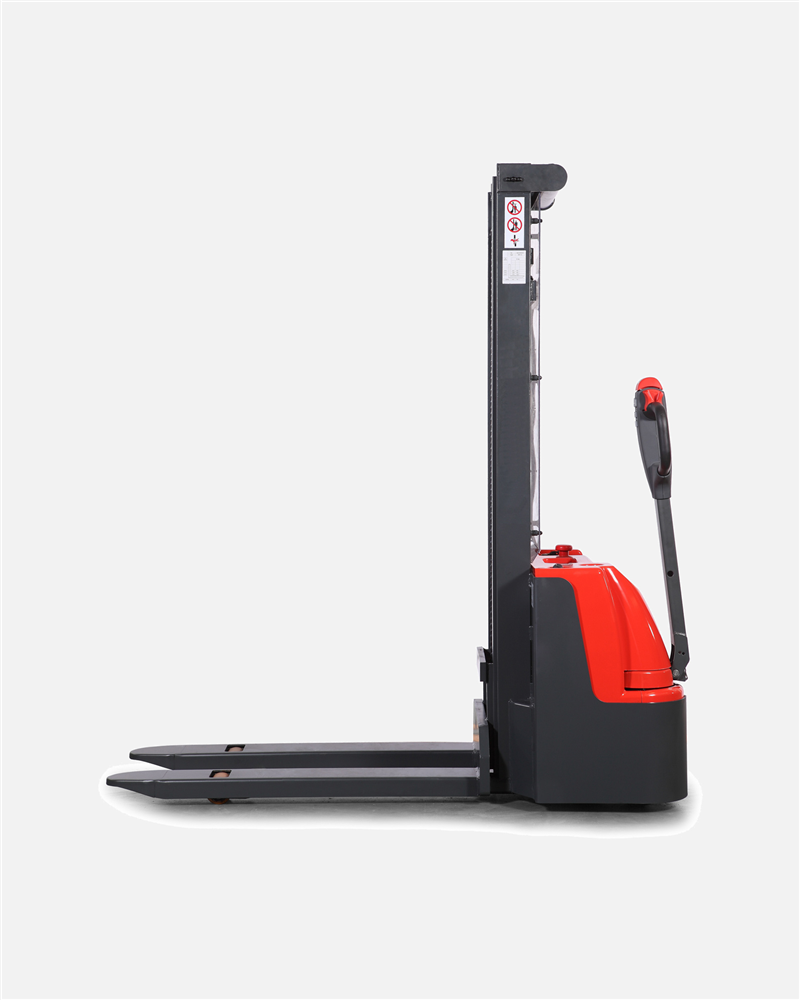

The PT15 is the economical solution for all medium applications in transporting operations or delivery applications on lorries with tail lifts. It accelerates any occasional order picking operations. The PS10M based on the same reliable components and design-character as the PT15 with monomast for perfect view to the loads.
