Identification: PS16W
Capacity Kg: 1600
Min fork height mm: 85
Lifting height mm: 4600
Centre of gravity separation: 600
Min support height: 2105
Min support height: 5112
Total width mm: 1050
Total length mm: 1995
Free lift mm: -
Fork width mm: 570
Fork length mm:1150
Driving speed wit-hout/with load km/h: 6.0/6.0
Lifting speed without/with load mm/s: 160/150
Lowering speed wit¬hout/with load mm/s: 95/120
Electronics: Curtis
Drive motor: 1,3 kW
Lift motor: 3 kW
Truck battery: 280Ah/24V
Charger: 40Ah/24V (External)
Fork wheel mm: Tandem 80 x 70
Drive wheel mm: 252 x 88
Gradient capacity without/with load: 12/6 grader
Brake: Electromagnetic
Speed regulation: Electronic impulse
Weight kg including battery: 1450
Swing radius mm: 1640
Mast type: Triplex

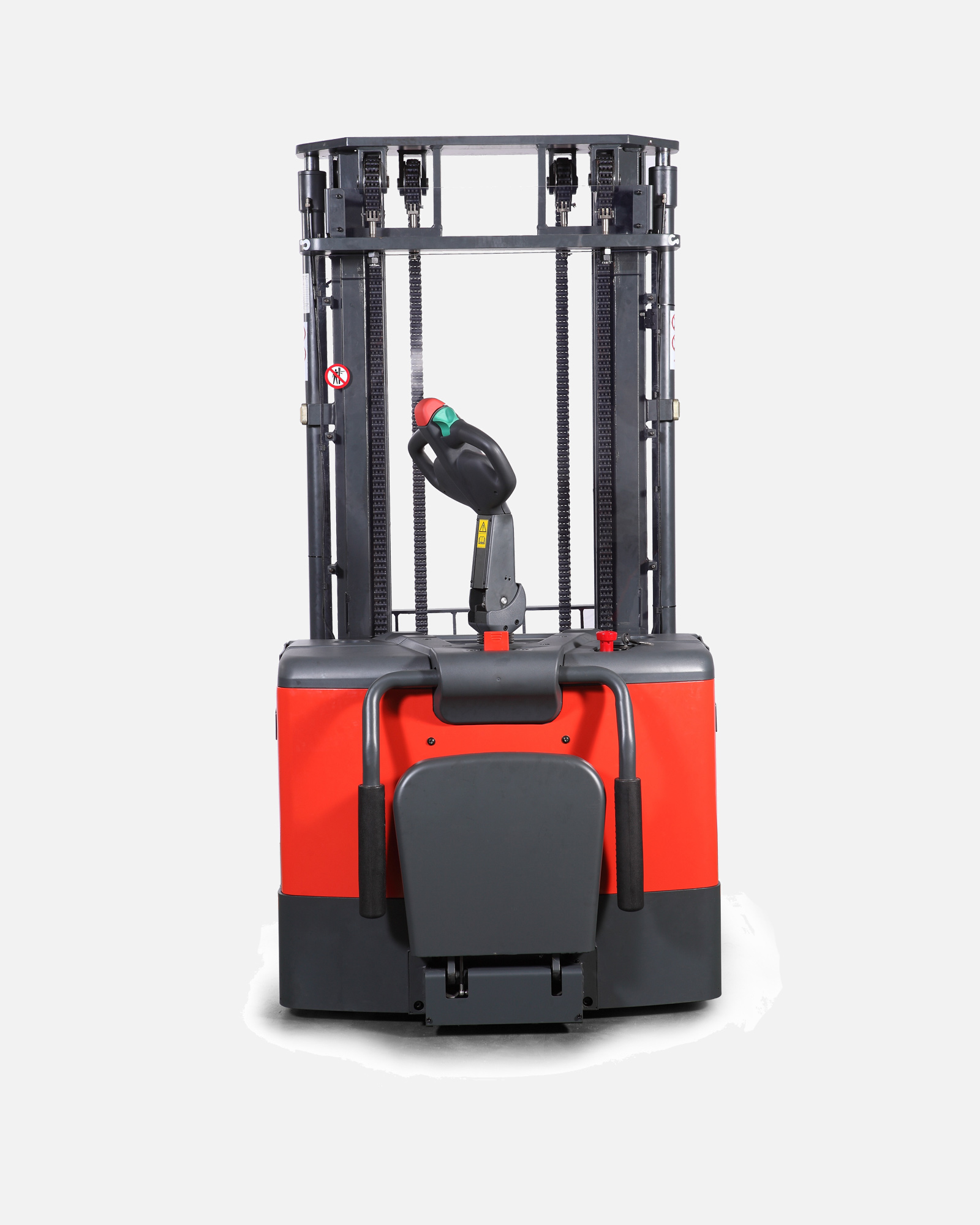

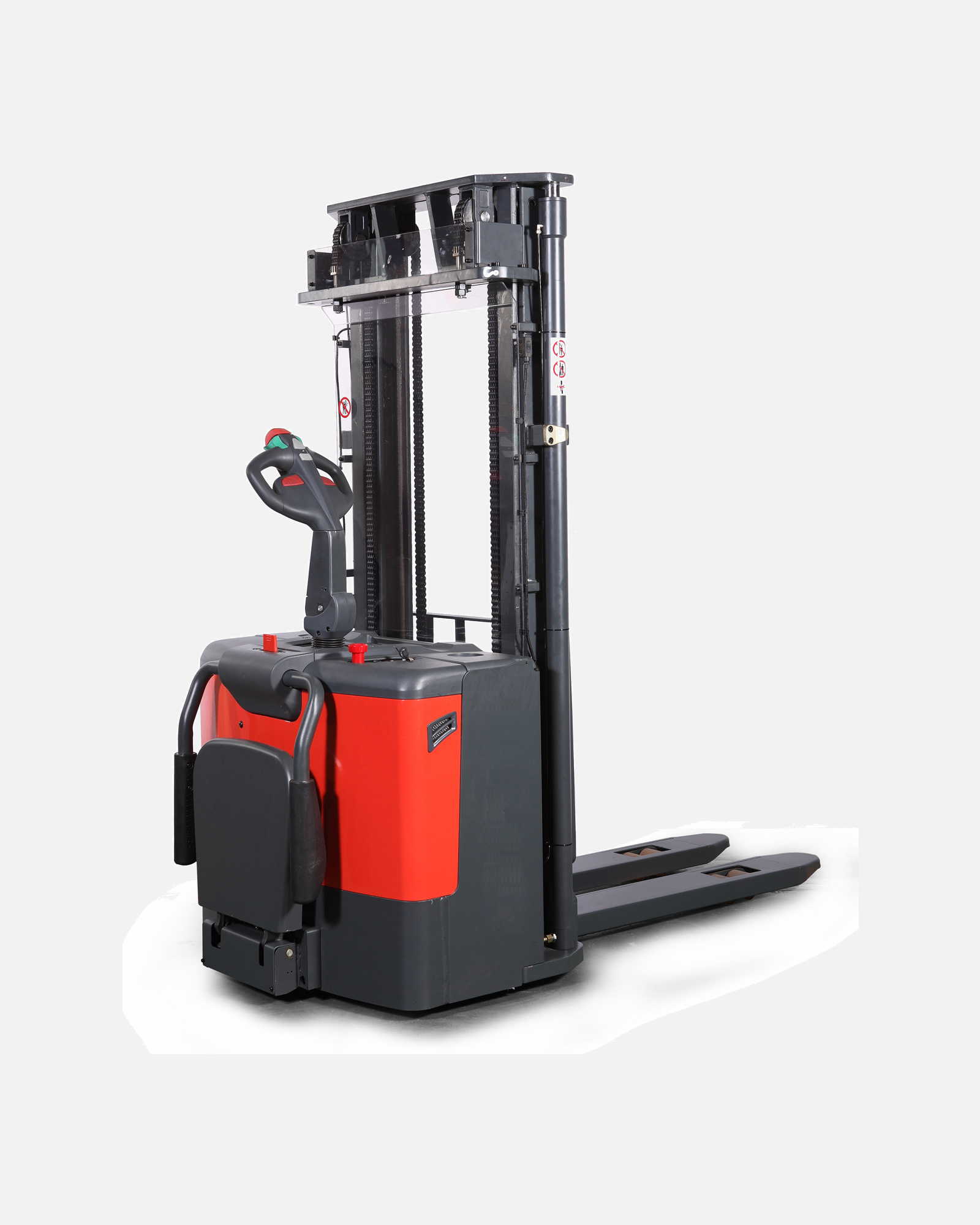

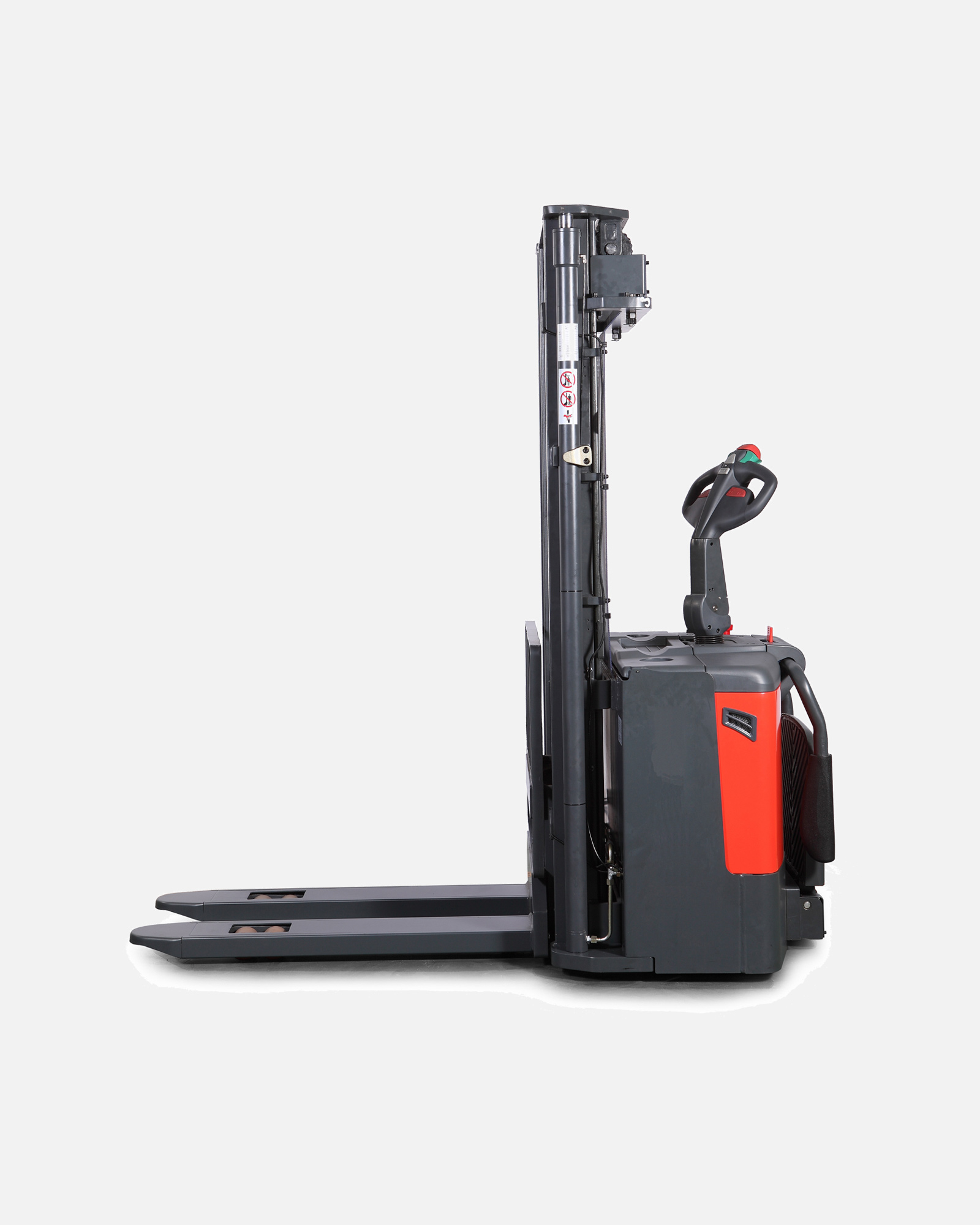

Electric power stackers for the really high lifts with electronic power steering and stand on platform with side protections makes the working days easier and safer. It does not get easier to handle goods in tight warehouses with high racking than with this full electric pallet stacker with power steering. Strong and robust with crucial details for the convenience of the user.
